Variant |
Mount type |
Piston depth |
Part number |
Anodised price exc. VAT |
Powdercoated price exc. VAT |
|
Billet 4 Radial 280 |
Radial 152.4mm ctrs. |
26mm |
B4280 |
£159.50 |
£187.00 |
|
Billet 4 Radial 310 |
Radial 152.4mm ctrs. |
26mm |
B4310 |
£159.50 |
£187.00 |
|
Billet 4 Radial 360 |
Radial 152.4mm ctrs. |
26mm |
B4360 |
£159.50 |
£187.00 |
|
Billet 4 Unilug 90 |
90mm bolt ctrs. |
26mm |
B4U90 |
£181.50 |
£209.00 |
|
Billet 4 Unilug 160 |
160mm bolt ctrs. |
26mm |
B4U160 |
£181.50 |
£209.00 |
|
Billet 4 M14 |
Direct fit for Girling M14 (82.55mm) |
26mm |
B4M14 |
£181.50 |
£209.00 |
|
Billet 4 M16 |
Direct fit for Girling M16 (82.55mm) |
26mm |
B4M16 |
£181.50 |
£209.00 |
|
Billet 4 Princess |
Austin Princess front (82.55mm) |
26mm |
B4Prin |
£181.50 |
£209.00 |
|
Billet 4 Princess + 4mm |
Austin Princess front (82.55mm) +4mm |
26mm |
B4Prin4 |
£181.50 |
£209.00 |
|
|
|
|
0 |
|
|
For more information on Hi Spec Calipers please call 01322 286850.
Billet 4 Range

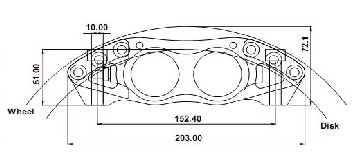

Click on drawing for spec of Billet 4 radial 260mm

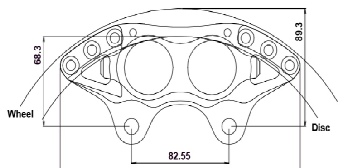

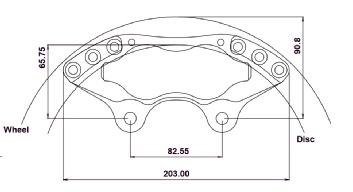

Click PDF for full PDF line drawing of Billet 4 M14
Click PDF for full PDF line drawing of Billet 4 M16

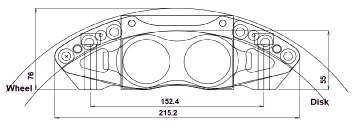

Click on drawing for spec of Billet 4 radial 310mm

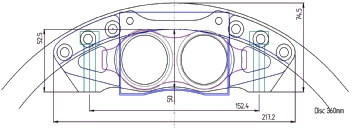

Click on drawing for spec of Billet 4 radial 360mm

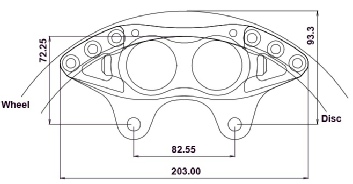

Click PDF for full PDF line drawing of Billet 4 Princess
Click PDF for full PDF line drawing of Billet 4 Princess +4

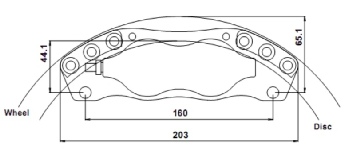

Click PDF for full PDF line drawing of Billet 4 Uni lug

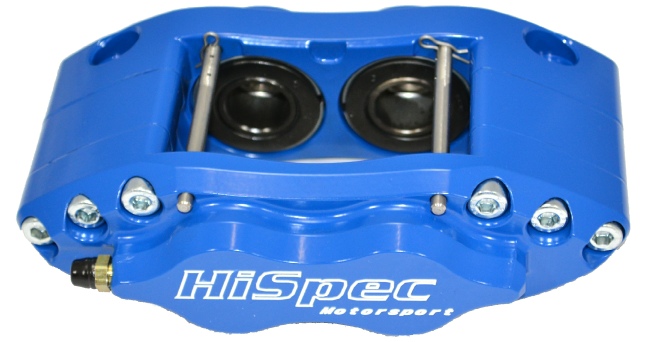

Billet 4 Description
Our Billet 4 caliper is our most common and widely used caliper with thousands sold worldwide.
Sleek lightweight, functional design.
CNC Machined from high quality 6082t6 billet aluminum.
Hand built, finished, polished and pressure tested in the UK.
Internal fluid crossover eliminates the need for external loop pipe.

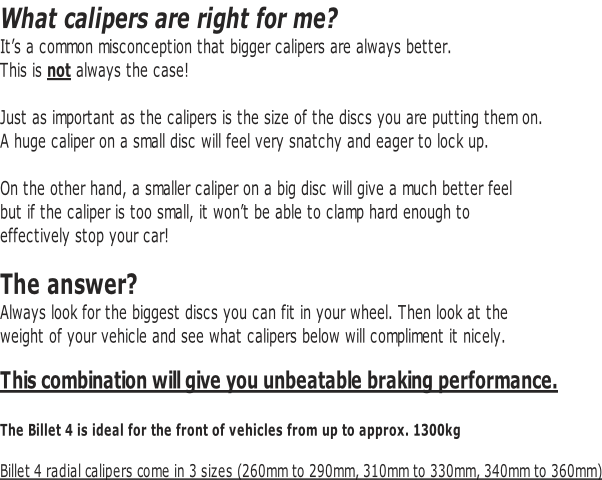

Ideal for the front of vehicles from up to approx. 1300kg with a power to weight up to 250bhp per tonne.
Hi Spec Road Calipers
Hi Spec road calipers are perfect for road use and occasional track use.
All of our road calipers, except our Ultralite range, come equipped with dust boots to keep dust, dirt and grime away from the piston seals.

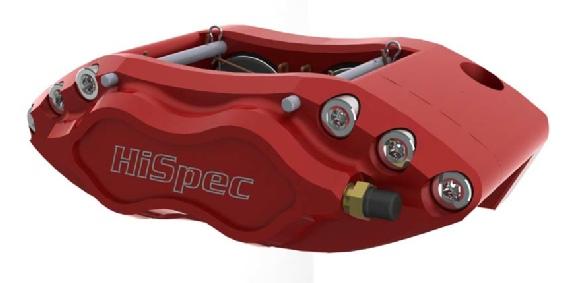

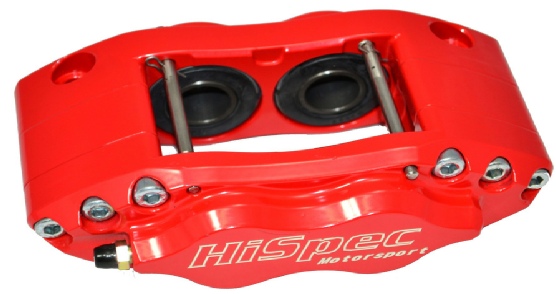

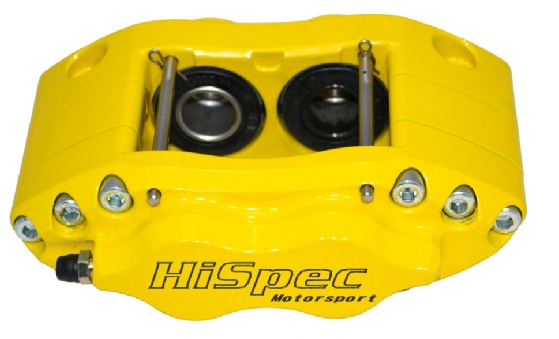

The Hi Spec Billet 4 caliper is available in two different looks, the classic and the recessed. This makes no difference to performance but the recessed style is 1.8mm thicker (this can make a difference to a kit fitting in a wheel or not).
