Typical application:

● For extreme uses and highly modified vehicles.

Features

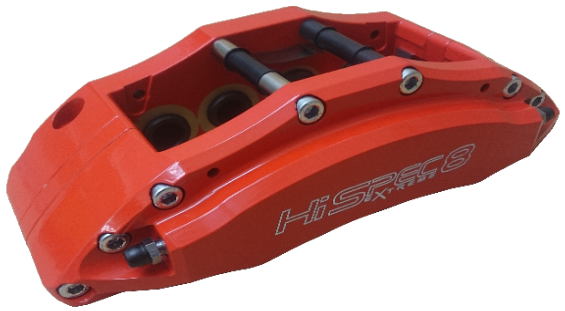

● 8 piston caliper with huge surface area.

● Enough stopping power to hold even the most powerful car at bay.

● Billet aluminium body (6082 T6).

● Largest pad possible to fit inside a 17” wheel.

● Staggered piston design to eliminate uneven pad wear.

● Billet aluminium pistons (6082 T6)

Technical specifications:

Piston size (surface area)

Option 19¦ 4x 31.6mm & 4x 25.4mm (57.88cm2)

Or

—----------------------------------------------------------------------

Or

—----------------------------------------------------------------------

Or

—----------------------------------------------------------------------

Piston material

Hard anodised billet aluminium (6082 T6)

Caliper colour

Powdercoat (Black¦ Blue¦ Red¦ Silver¦ Yellow)

Body material

6082 T6 billet aluminium

Weight no pads

4820g

Hydraulic Thread

 M10 x 1.0

Mounting offset (to rear of disc)

26mm

To suit disc diameter (Width)

320mm - 340mm  (26mm - 35mm)

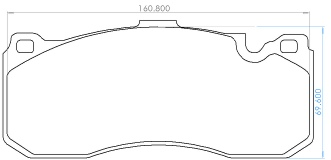

Pad specifications:

Pad type

8-pot 165

Pad surface area

90.06cm2

Pad thickness

10.7mm material / 15.7mm total

Pad volume

96.4 cm3

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

Powdercoated price exc. VAT

Extreme 8

Radial 210mm ctrs.

28mm

8PX                  330

N/A

£330.00
