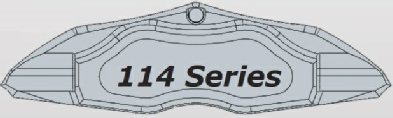

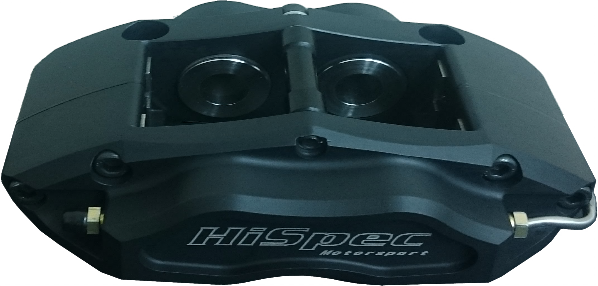

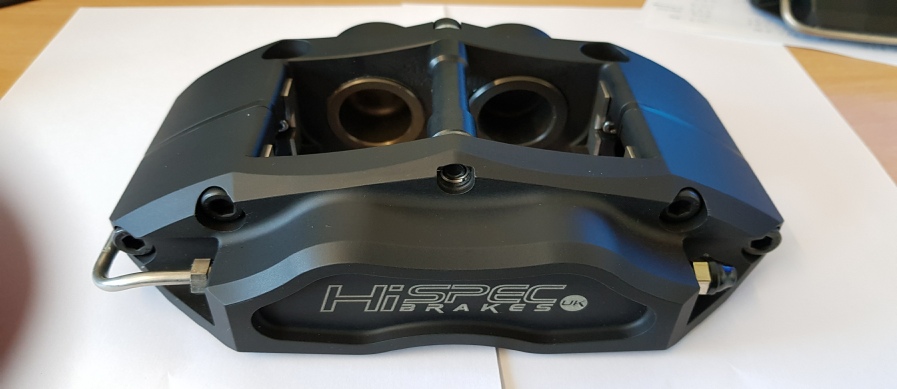

R114-4 Range


Typical application:

● Front and rear caliper up to 280mm rotor in 13” wheels and 315mm rotor in 15” wheels

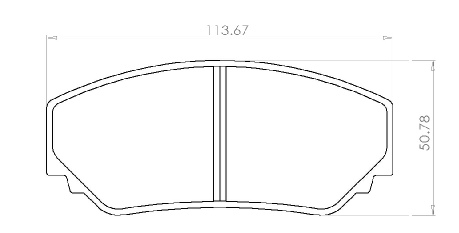

Pad specifications:


Pad type

RS-114 wide

Pad surface area

42.15 cm2

Pad thickness

9.4mm material / 14.5mm total

Pad volume

39.61 cm3

Features

● Radial mount 120mm ctrs.


● 21 Piston Optional bores.


● High temperature EPDM seals.


● Billet aluminium body Race caliper.


● Stainless steel wear plates.


● Billet aluminium piston, Aluminium anti knock back piston,  DUAL piston on RS & RX only.

Piston 1

Piston 2

Variant

Mount type

Piston depth

Part number

Anodised price exc. VAT

R-114 Radial 280

Radial 120mm ctrs.

21mm

R114 280

£176.00

R-114 DL

Dynalite fitment 133.35mm lug

21mm

R114 DL

£187.00

R-114 Radial 310

Radial 120mm ctrs.

21mm

R114 310

£176.00

RS-114 Radial 280

Radial 120mm ctrs.

26mm

RS114 280

£176.00

RS-114 DL

Dynalite fitment 133.35mm lug

26mm

RS114 DL

£187.00

RS-114 Radial 310

Radial 120mm ctrs.

26mm

RS114 310

£176.00

RX-114 Radial 280

Radial 120mm ctrs.

30mm

RX114 280

£193.60

RX-114 Radial 310

Radial 120mm ctrs.

30mm

RX114 310

£193.60
Click here to buy brake pads

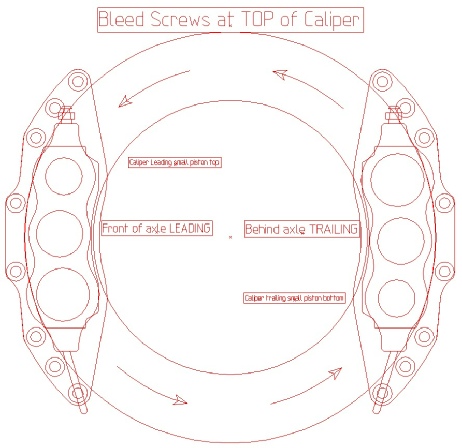

Hi Spec Line drawing R114-4  / RS114-4 / RX114-4

Click the image to view technical drawing.

R114-spec

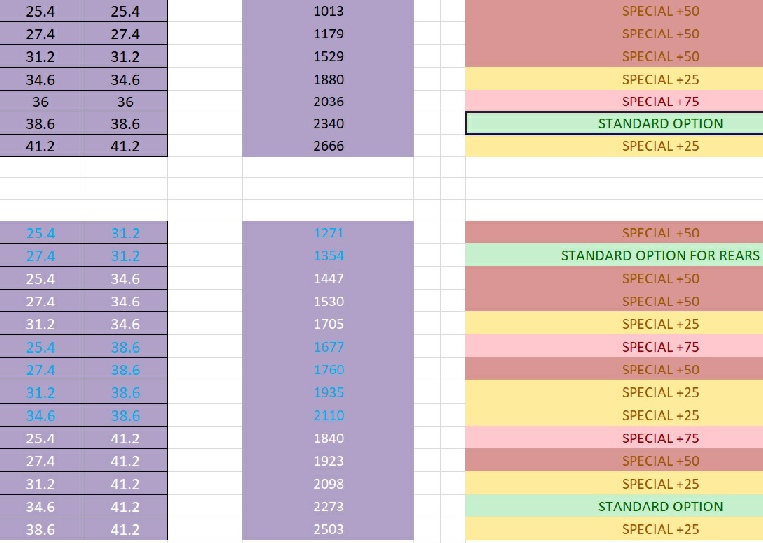

4 pot differential bores

Total piston Surface area (mm2)

4 pot same size bores

Total piston Surface area (mm2)

Hi Spec DUAL  + knock back pistons explained


Click on piston

Piston

For more information on Hi Spec Calipers please call on 01322 286 850.
