EPB Rear Caliper and Electronic Handbrake Range

Technical specifications:


Piston size (surface area)

1 x 38.6mm (11.70cm2)

Piston material

Hard anodised billet aluminium (6082 T6)

Caliper colour

Powdercoat (Black¦ Blue¦ Red¦ Silver¦ Yellow)

Anodised (Black¦ Silver)

Body material

6082 T6 billet aluminium

Hydraulic Thread

 M10 x 1.0

To suit disc diameter (Width)

(240mm to 315mm) (10mm and 24mm radial & golf)

Pad Specifications:


Pad type

Ultralite

Pad surface area

33.94 cm2

Pad thickness

9.7mm material /   14.3mm total

Pad volume

32.92 cm3

Variant

Mount type

Part number

Anodised price exc. VAT

Powdercoated price exc. VAT

EPB Ultralite Radial

Radial 130mm ctrs.

EPB RAD

£847.00

£911.90

EPB Ultralite Golf

VW Golf Mk4 rear fitment

EPB GOLF

£847.00

£911.90

EPB Ultralite MX5

Mazda MX5 rear fitment

EPB MX5

£847.00

£911.90






For more information on Hi Spec Calipers please call 01322 286 850.

Click here to buy brake pads

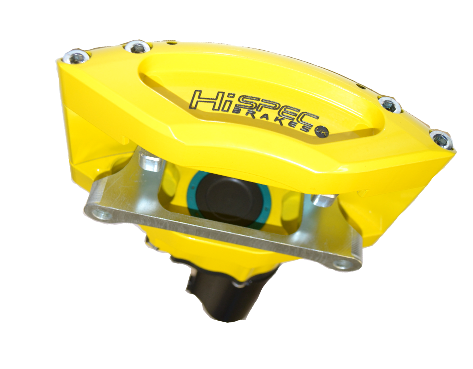

EPB- Rear Caliper Kit – Description


Our most powerful rear handbrake caliper ever!!


Electronic handbrakes are popular on modern vehicles so take the

opportunity to retrofit a state of the art handbrake!

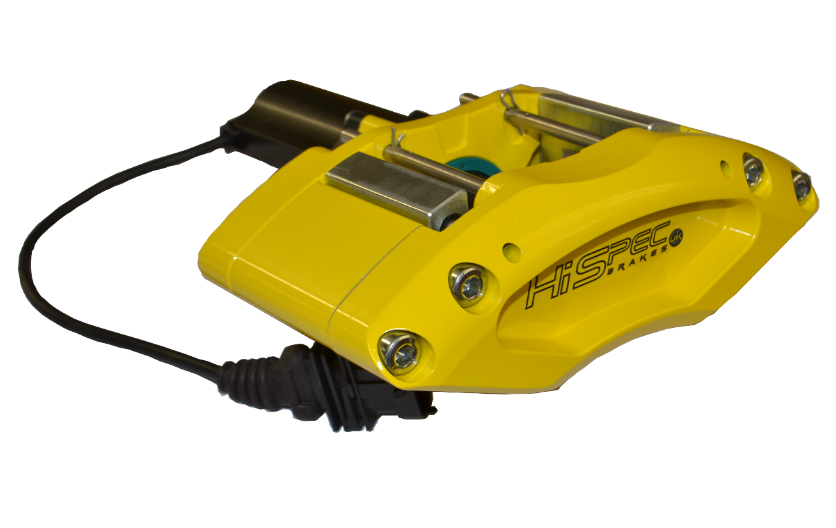

Our EPB rear caliper uses hi-torque electric motors to engage or disengage the handbrake.


Once the handbrake is engaged or disengaged, it will hold the vehicle stationary without any electrical power.


Easy electrical installation.


Allows for more space on the interior as the handbrake lever and handbrake cables can be eliminated.


Handbrake can be engaged or disengaged at the push of a button.


Ideal for use on even heavier vehicles.


MOT and IVA test compliant.

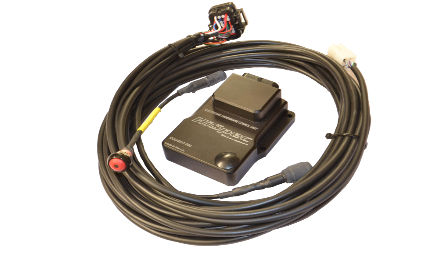

Kit contains: Pair of EPB spot calipers, 1x EPB ECU, 1x EPB wiring loom and 1x EPB button switch.



EPB- rear caliper – Technical Information

Various loom length options.

Sliding caliper.

Suitable for disc thickness from to 10mm to 24mm*

Caliper weight- approx. 1.28kg inc. pads per caliper.

Loom weight approx. 0.4kg to 0.55kg.

Mounting lug Golf Mk4  or radial.

Pad thickness - 12mm total and 9mm thick friction material.

Pad surface area - 28cm².

Clamping force - approx 1480kg.

*Contact us if you require a spacer size that is not listed.


hispec handbrake ECU Operation (1).pdf

Click for ECU Operation guide

hispec handbrake ECU user guide.pdf

Click for ECU user guide
