EPB Spot Handbrake Range

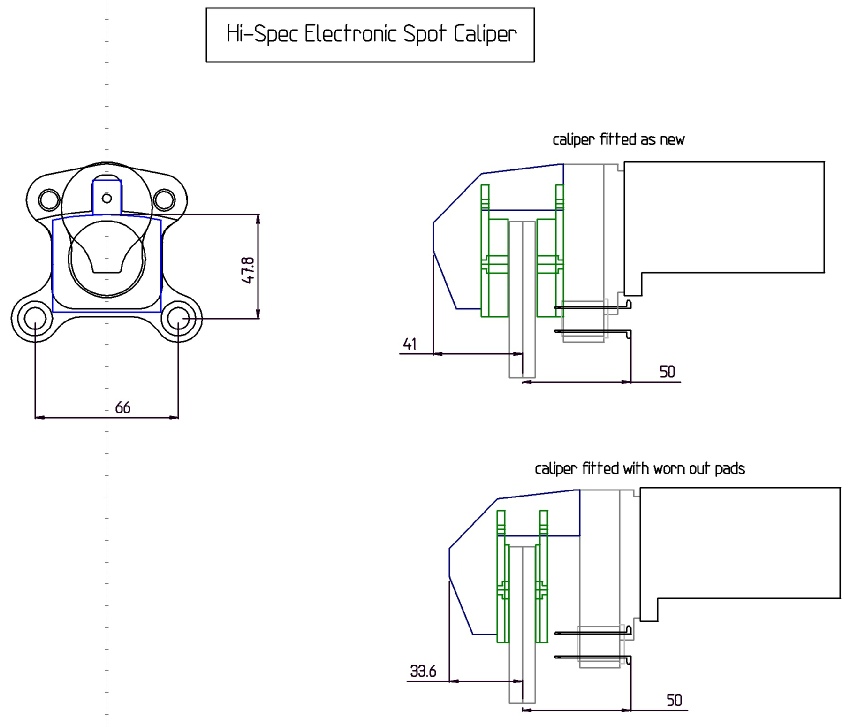

Click for technical drawing

Click for ECU Operation guide

Click for fitting user guide

The electronic handbrake can be fitted to almost any vehicle on up to a 330mm rotor. The electronics require a switchable live and grounding supply to work, meaning fitment can be carried out at home. The caliper can withold over 2500psi of power, meaning it can happily work on cars up to 2000kg.

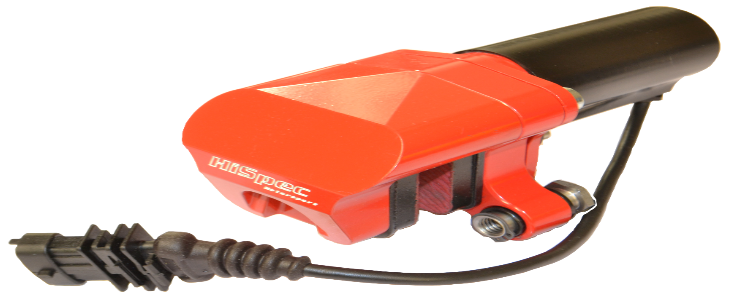

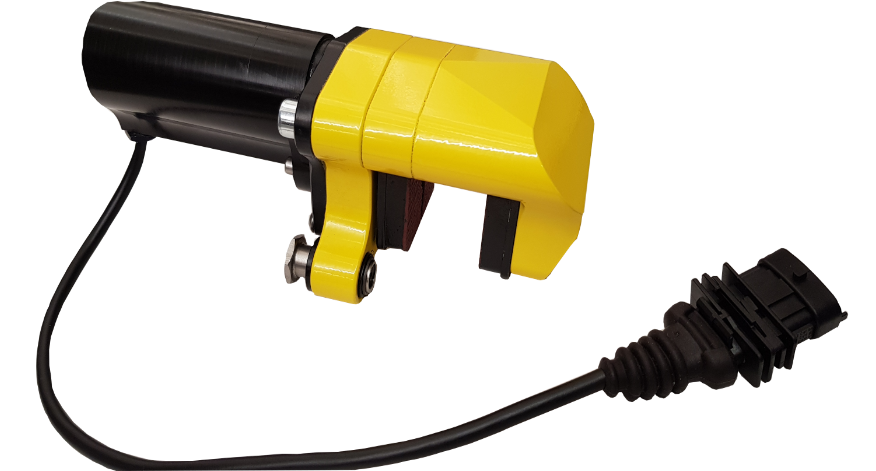

EPB- Spot Caliper Kit – Description



Our most powerful handbrake spot caliper ever!!

Electronic handbrakes are popular on modern vehicles so take the opportunity to retrofit a state of the art handbrake.

Our EPB Spot caliper uses hi-torque electric motors to engage or disengage the handbrake.

Once the handbrake is engaged or disengaged, it will hold the vehicle stationary without any electrical power.

Easy electrical installation.

Designed to be used as an auxiliary handbrake caliper.

Allows for more space on the interior as the handbrake lever and handbrake cables can be eliminated.

Handbrake can be engaged or disengaged at the push of a button.

Ideal for use on even heavier vehicles.

MOT and IVA test compliant.

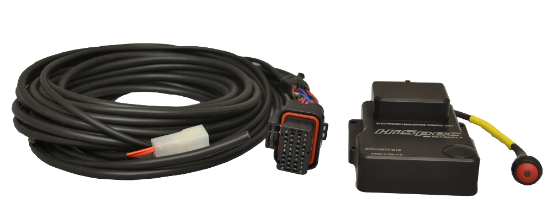

Kit contains: Pair of EPB spot calipers, 1x EPB ECU, 1x EPB wiring loom and 1x EPB button switch.

EPB- Spot Caliper – Technical Information

 Various loom length options.

 Sliding caliper.

 Suitable for disc thickness from to 6mm to 36mm*

 Caliper weight - approx. 1.28kg inc. pads per caliper.

 Loom weight approx. 0.4kg to 0.55kg.

 Mounting lug P.C.D. – 66mm.

 Pad thickness - 12mm total and 9mm thick friction material.

 Pad surface area-28cm².

 Clamping force - approx 1480kg.

*Contact us if you require a spacer size that is not listed.
