We have designed and manufactured uprights based on the Ford Cortina, with both Cortina and Sierra hub options.  Our uprights will save you considerable weight on you vehicle compared to the standard uprights.  All items are manufactured out of high quality aluminium and stainless steel.


Hi Spec Cortina geometry uprights

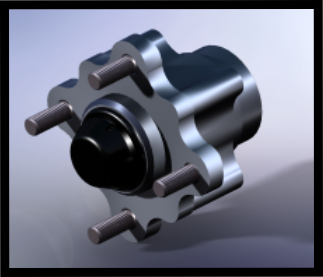

You might also like: Lightweight billet Ford Cortina front hubs Complete with wheel studs, bearings and grease cap 																																								weight just 1096 grams Complete upright assembly weight only  2047 grams  Compatible with standard Cortina suspension, steering rack, hubs and bearings Click here for individual upright components and spares Cortina hub technical drawing Sierra hub technical drawing

All PRICES EXCLUDE VAT

2 upright aluminium castings - cast in ally LM25 in the UK. Fully heat treated

2 stub axles - machined from EN24T steel

2 steering arms - machined from billet aluminium 6082

4 tapered stainless steel top and bottom sleeves

All nuts and bolts.

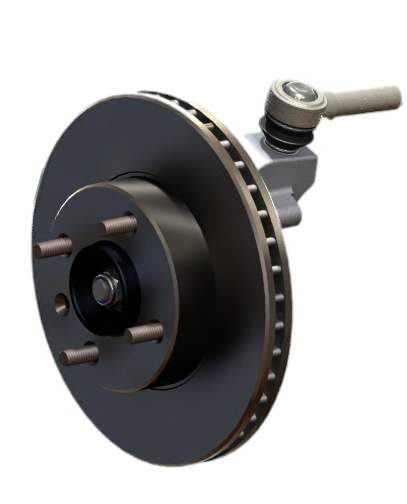

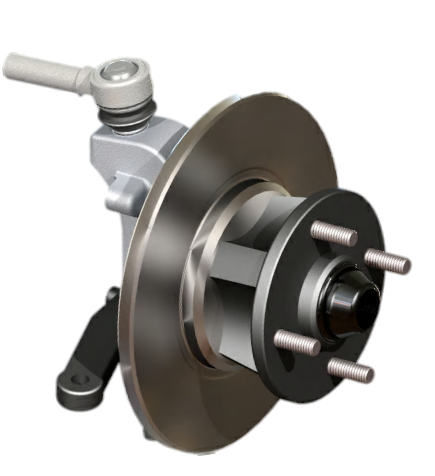

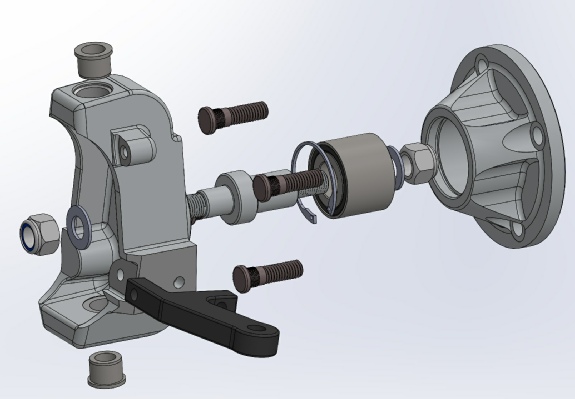

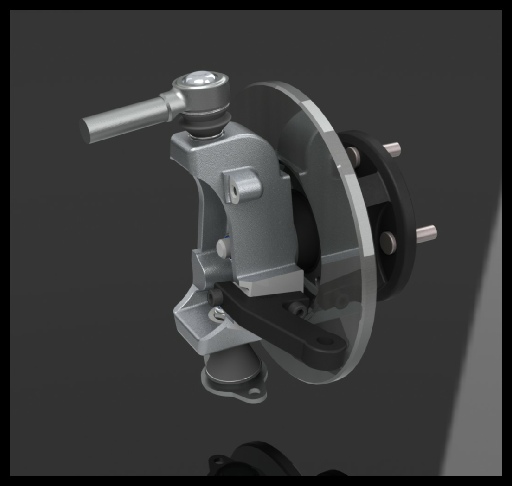

Cortina upright assembly with Sierra hub


This combination works well using Sierra standard disc 260 x 24mm and Hi Spec Ultralite 4 or Billet 4 Princess lug caliper. These fit straight on and keep the Cortina geometry.

The stub axle is short and very rigid.

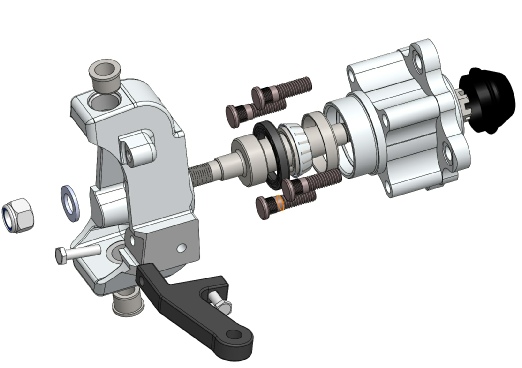

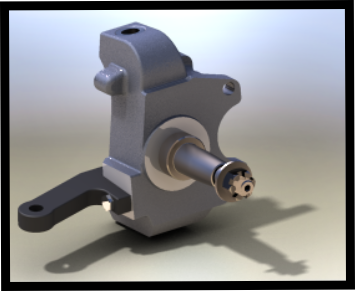

Cortina upright Lightweight assembly

Upright assembly price each £140.00

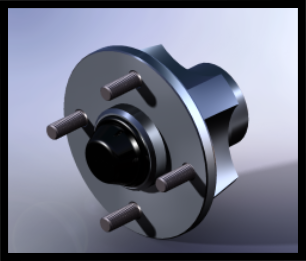

 Billet Ford Cortina and Escort Mk2 RS2000 front hubs

Complete with wheel studs, bearings and grease cap -

                                        assembly weight just 1521 grams

Hubs price from £55 each
